CAPABILITIES

ELECTRICAL WORKSHOP

  • Floor Space: 1048 square meters
  • 2 x 5T Eilbeck ABUS Overhead Crane
  • 16T Eilbeck ABUS Overhead Crane
  • Fenced Off Test Bay Area

CAPABILITIES

  • Burnout Oven
  • Wash Down Bay
  • Lathe
  • Welding Machines
  • Varnish Tank
  • Laser Alignment Machine
  • 3T Table Top Delivery Truck

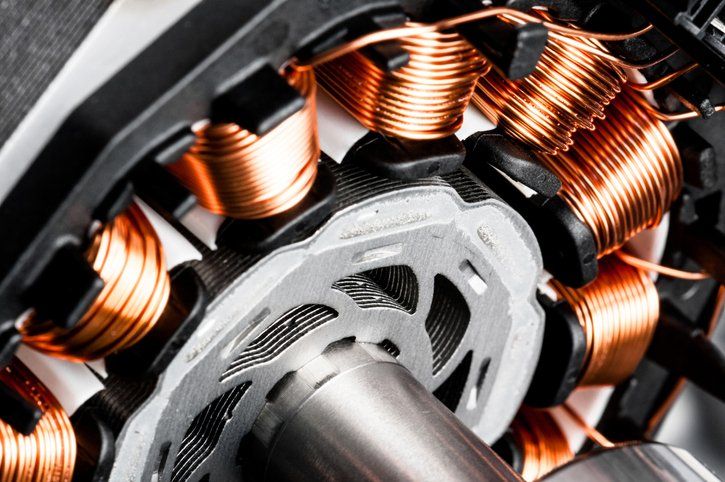

  • Samatic 2680 Automatic Winding Machine
  • Pick up and delivery via Arrow trucks and utes
  • Grit Blaster Unit
  • Spray Booth
  • Drill Press
  • Forklift – 2T
  • Compressor
  • Electronic Testing and Tagging Machine
  • Pressure Testing Facilities

RESOURCES

Permanent Workforce:

  • Workshop Manager – (1)
  • Contracts Manager – (1)
  • Contracts Supervisor – (1)
  • Workshop Supervisor – (1)
  • Leading Hands – (3)
  • Tradespeople – (14)
  • Apprentices – (1)

Arrow Electrical Services can also provide specialist engineering services.

MINING WORKSHOP

Floor Space: 250 square meters (Dedicated to building and overhauling electrical mining equipment)

  • 16T Eilbeck ABUS Overhead Crane
  • Fenced Off Test Bay Area

CAPABILITIES

  • Pressure Testing Facilities
  • Dedicated Approvals Room with Machined calibrations table, master/working instrument lockers for AS/NZS3800 overhauls work.
  • Certified to MP87.2 incorporating AS/NZS 3800 & AS/NZS 2290.1
  • Pre-Overhaul, Overhaul & Repair 0f:

    Type of Protection Ex ‘d’
    – Flameproof enclosures including electrical equipment installed within an enclosure rated up to and including 11kV – Group I only
    – AC rotating machines up to and including 3.3kV, 315kW – Group I & II only – DC rotating machines up to and including 440V, 210kW – Group I & II only

    Type of Protection Ex ‘e’
    – Increased safety enclosures including electrical equipment installed within an enclosure rated up to and including 1kV – Group I only
    – AC rotating machines up to and including 415V, 220kW – Group I & II only

    Type of Protection Ex ‘n’
    – AC rotating machines up to and including 415V, 220kW – Group I & II only

    Type of Protection Ex ‘t’ (DIP)
    – AC rotating machines up to and including 3.3kV, 700kW – Group III only

  • High Voltage test supplies for full operations testing of 11KV and 6.6KV equipment
  • High current 1000v and 415V supplies available for operations testing of machinery
  • Hi-pot / Megger testers for applications up to 80KV
  • Various variable AC and DC test supplied for control circuit testing
  • Earth leakage test equipment to record trip times and levels
  • Earth continuity test equipment to record EC trip levels and times
  • Current injection trip time tester for overloads and circuit-breakers. Current injection testing up to 3000A
  • Level 1 ASP Service Provider – Cat 1-2-3 & 4 – Grade B
  • Level 2 ASP Service Provider – Grade B
  • Carry out Australian Standards Audits on equipment for the coal mining industry
  • Pick up and delivery via Arrow trucks and utes

RESOURCES

Permanent Workforce:

  • Mining Manager – (1)
  • Mining Supervisor – (1)
  • Mining Foreman – (1)
  • Leading Hands – (2)
  • Tradespeople – (14)
  • Apprentices – (3)

Field service personnel including certified competent electrical tradespeople for work on group 1 & 11 explosion protected equipment, including repairs, pre-overhaul audits and internal/external electrical inspections to current mining standards.

Arrow Electrical Services can also provide specialist engineering services.
